1.Technical Specifications

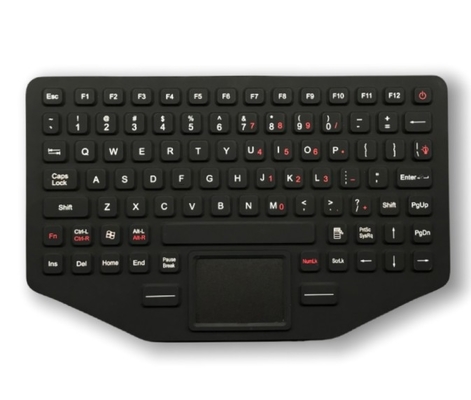

Industrial Silicon-rubber Keyboard, F9, integrate with full functional 2 keys Touch-pad .
Compact design and highly reliable.
Provide waterproof, dustproof & explosionproof features ( IP67 / IK07 ).
Over 2million key life cycle, weight only 390g.
F9 keyboard has White-Back-light, which provide clear sight in dark environment. Other colour back-light can be customized.
USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.
2.Mechanical Features
Key life cycle: 2mil min.
Key press force: 2~3N
Key travel length: 2MM
Dimensions: 283.5*178.7*13.5MM
Weight: 390g/without cable, 450g/with cable
3.Environmental adaptability
Operating temperature: -40℃～+65℃,
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP67 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
4.Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
5. Installation drawing
6.APPLICATION SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

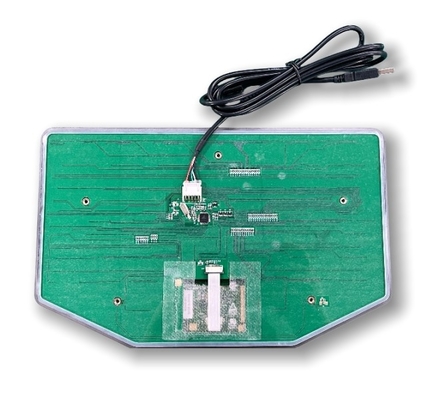

7. more pictures:
8.Please note:
All photos on this website were taken in real conditions. Due to variations in lighting, shooting angles, and display resolutions, the images you see may exhibit a certain degree of color difference. We kindly ask you to refer to the actual received products for accurate representation. Thank you for your understanding.
If you have any question about this items,please feel free to contact us for further information,thank you.
