1.Technical Specifications
Industrial membrane keyboard.
85 keys, Over 2million key life cycle.
Compact design and highly reliable.
Provide waterproof, dustproof & explosionproof features (IP67 / IK07 ).
Easy to clean and disinfect.
One-piece matte membrane on top, Anti-static material is for option.
USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.
2.Mechanical Features
Panel board material: PET
Base board material: Aluminum alloy
Key life cycle: 2million min.
Key press force: 2~3N
Key travel length: 0.6MM
Dimensions: 400*132*18MM
Weight: 660g
3.Environmental adaptability
Operating temperature: -40℃～+65℃,
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP67 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
4.Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
5. Installation drawing
6.APPLICATION SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

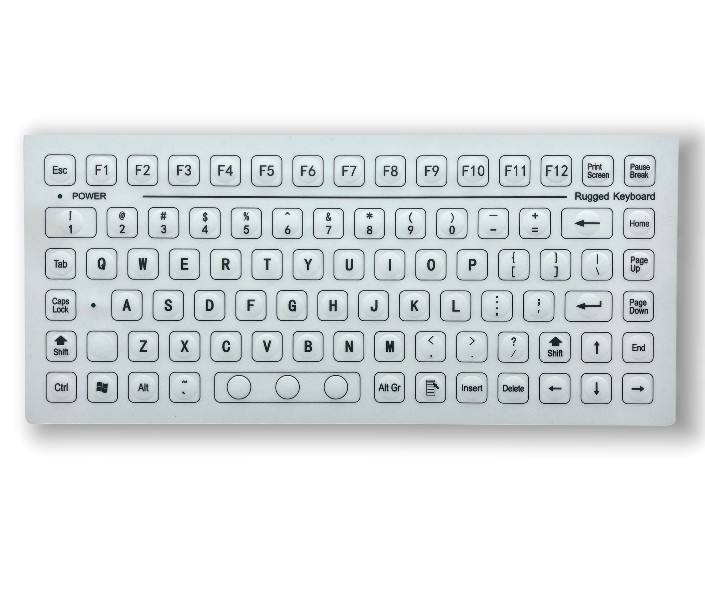

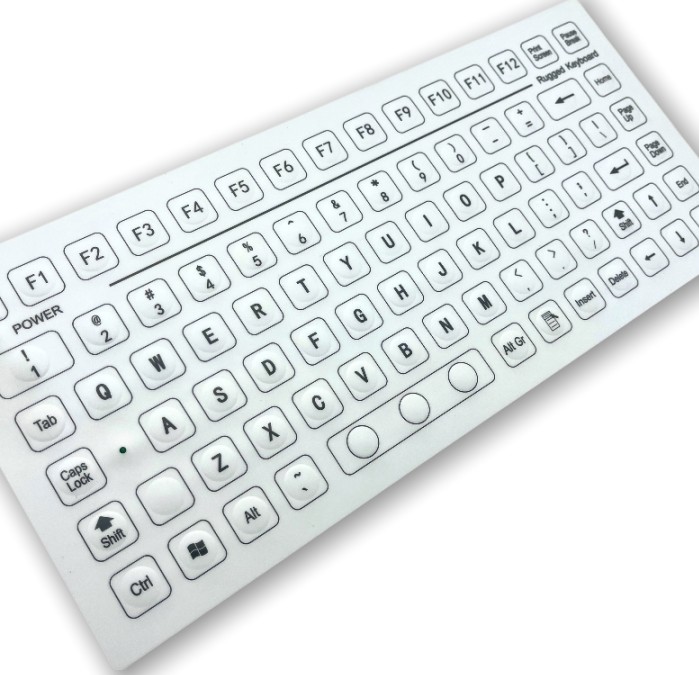

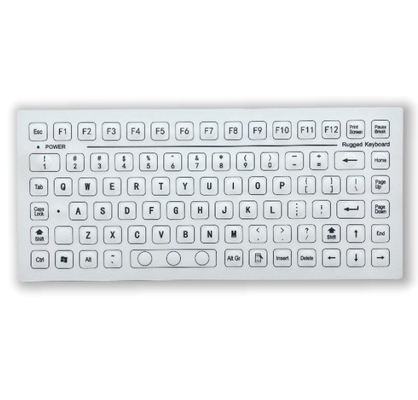

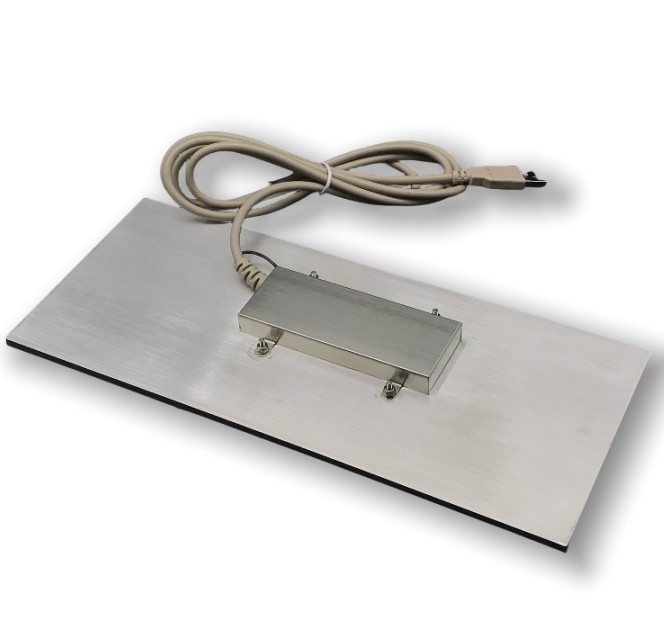

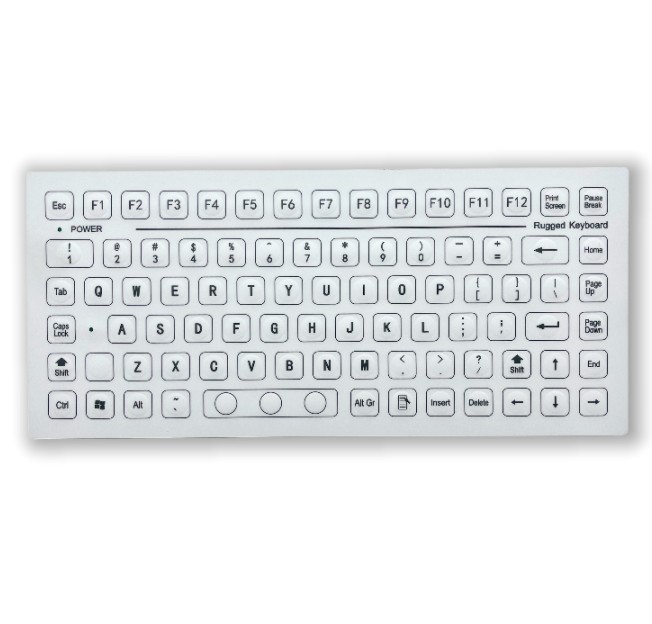

7. more pictures:
8.Please note:
All photos on this website were taken in real conditions. Due to variations in lighting, shooting angles, and display resolutions, the images you see may exhibit a certain degree of color difference. We kindly ask you to refer to the actual received products for accurate representation. Thank you for your understanding.
If you have any question about this items,please feel free to contact us for further information,thank you.
