1. Technical Specifications
Wireless(2.4G) industrial stainless-steel keyboard, integrate with full functional 2 keys Touch-pad.
Provide waterproof, dustproof, violence resist & explosionproof features ( IP67 / IK07 ).
Highly reliable design, over 2 million key life cycle.
Signal isolation barrier is for option.
The keyboard case and keys are made by SUS304 stainless-steel ( SUS316 is for option ).
Powered by 4-AAA batterys, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.
2. Mechanical Features
Panel board and keys material: SUS304 Stainless-steel
Polyurethane ( PU) pouring sealing
Key life cycle: 2 million min.
Key press force: 2~3N
Key travel length: 0.6MM
Dimensions: 386*143*21.5MM
Weight: 3500g
3. Environmental adaptability
OperatingTemp: -40℃～+65℃,
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP67 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
4. Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
5. Installation drawing
6. APPLICATION SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

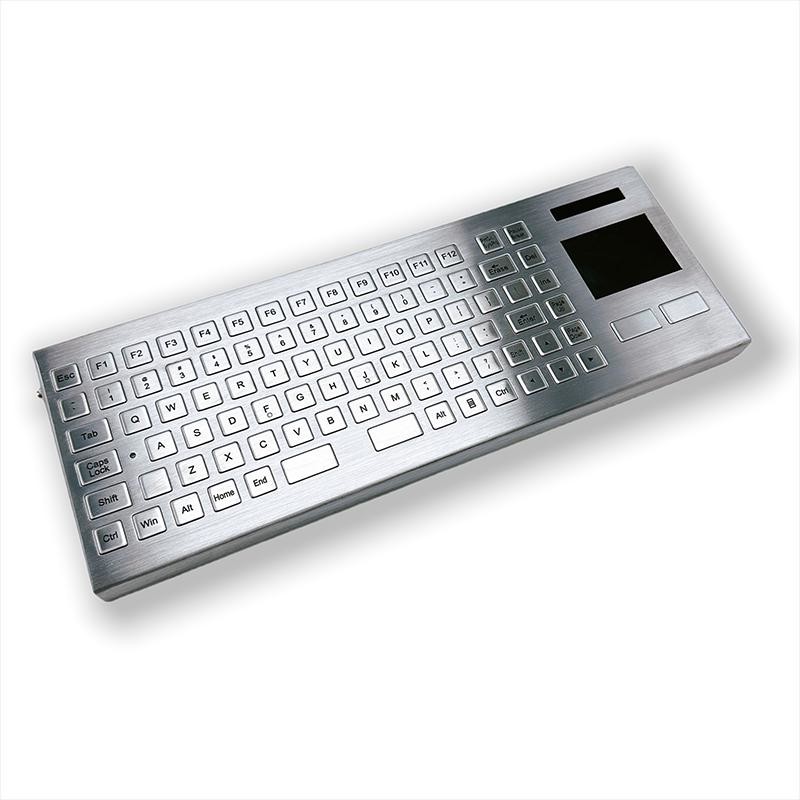

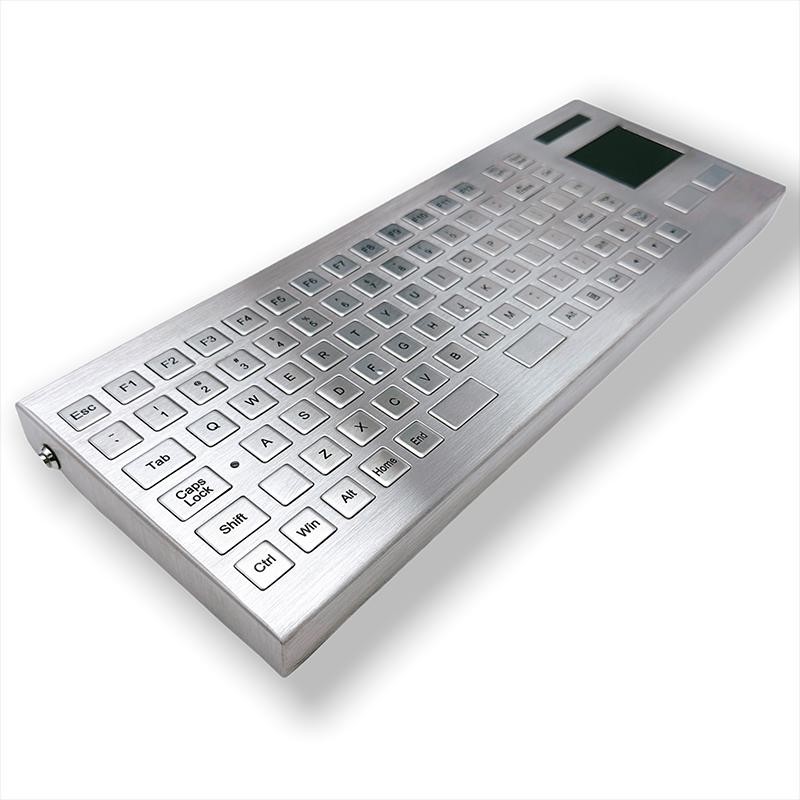

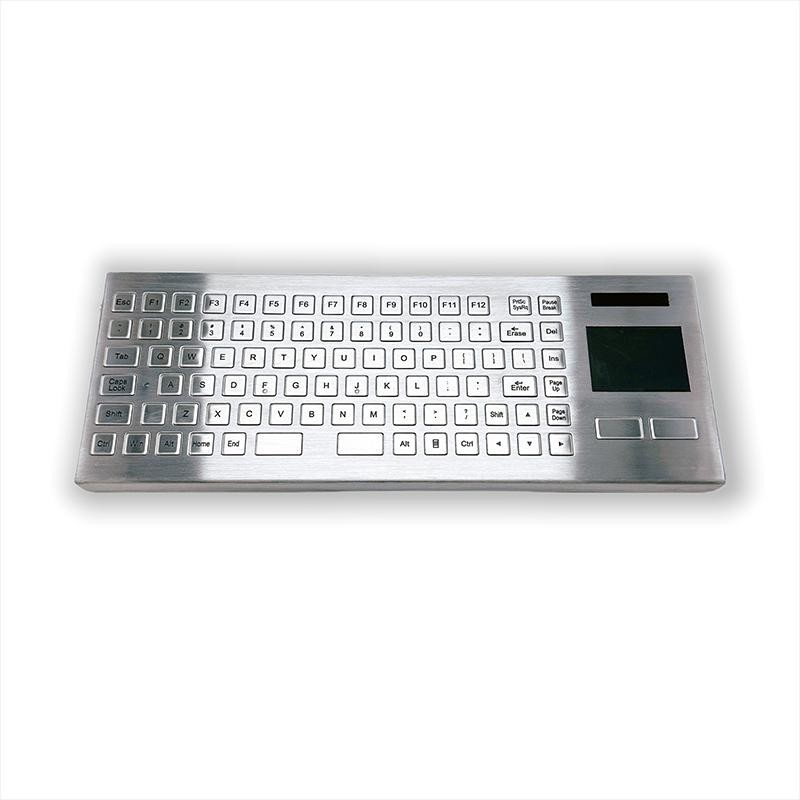

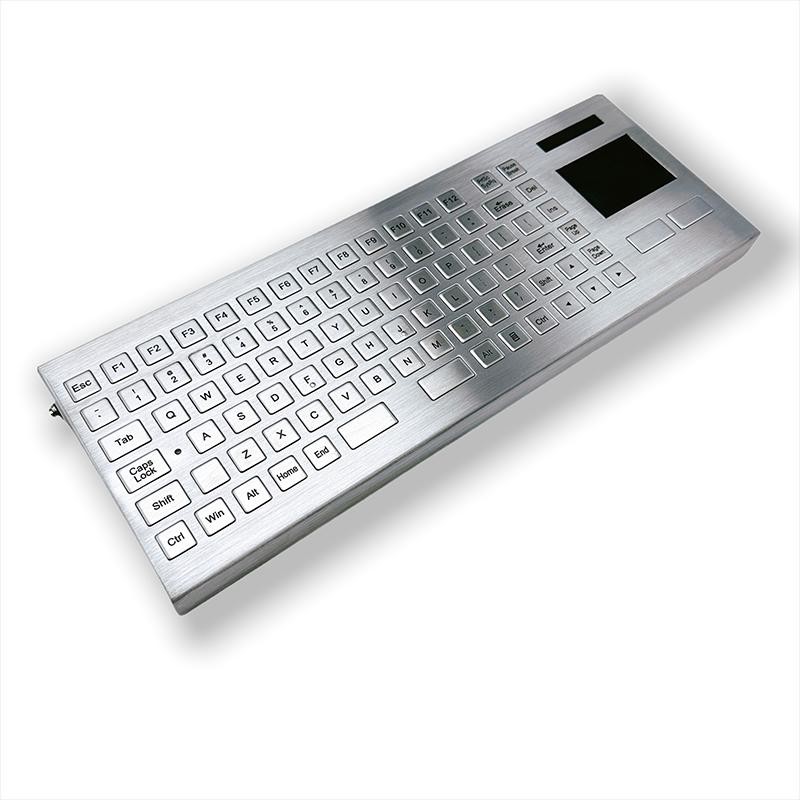

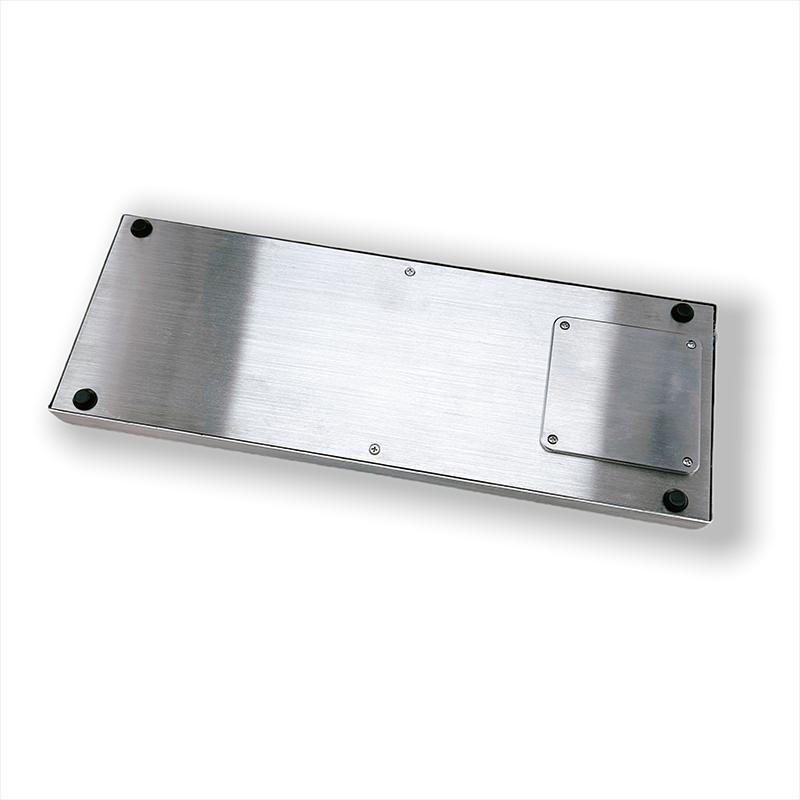

7. more pictures:
